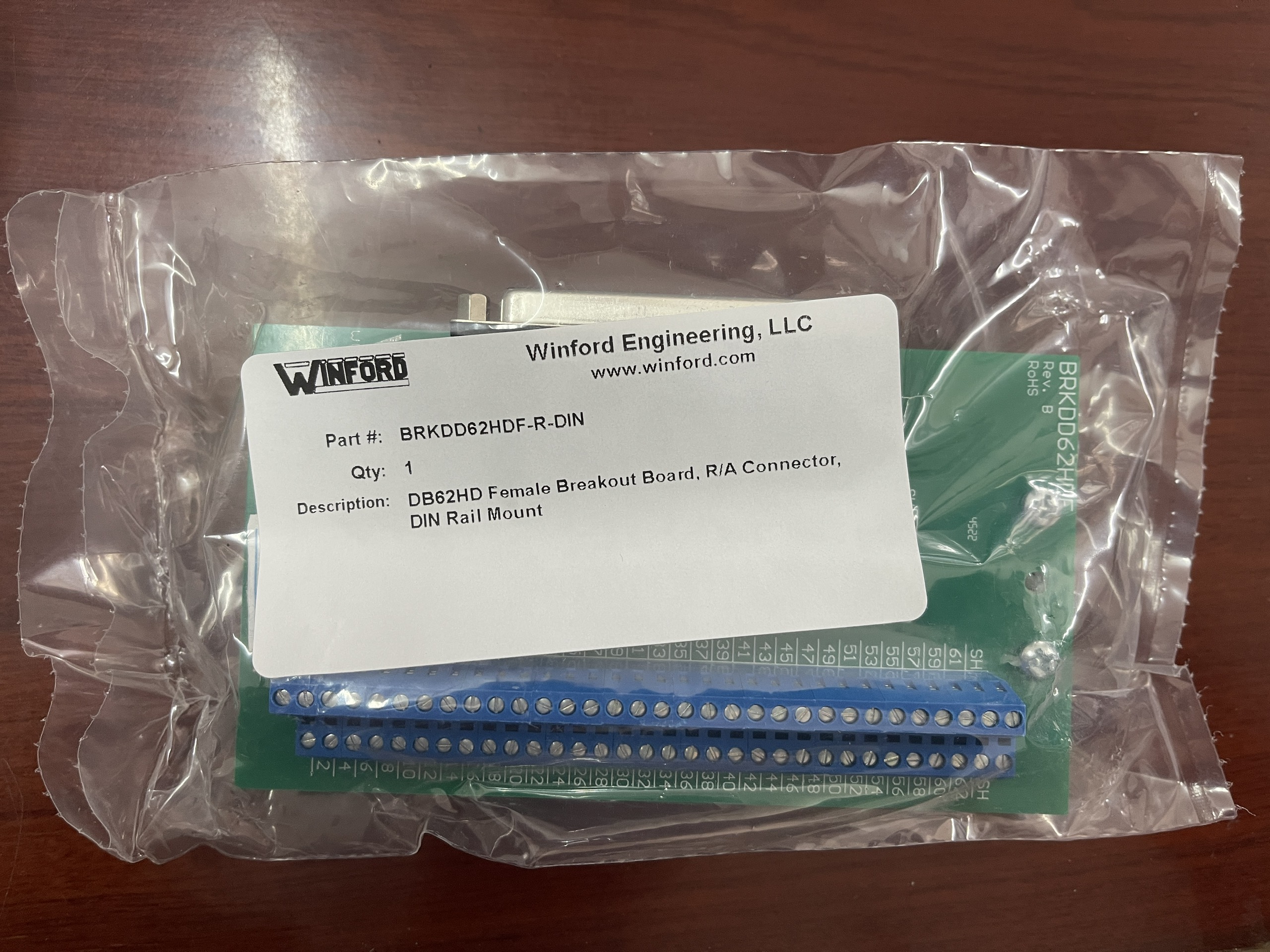

Model: BRKDD62HDF-R-DIN
Manufacturer: Winford
Description: DB62 Breakout Board

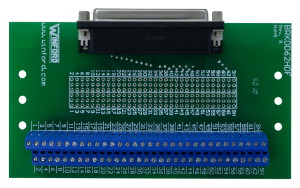

Make connections quickly and reliably with this breakout board, which brings every pin of its DB62HD connector out to screw terminals. This product is available with both male and female connectors. Double-deck screw terminals efficiently utilize board area to provide a compact footprint.
Each pin, including shield, is also brought to solder pads (3 per pin) at 0.1″ spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.
This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, Data Aquisition (DAQ) devices, and other devices that use a DB-62HD connector.
Technically, the correct term for a DB62HD connector is DC62, but that term is not commonly used.
- Available with DB62HD Male or Female connector
- Perfect for DAQ and I/O Board connections
- Screw terminal for each of the 62 lines, plus shield
- Solder pad connection space for all 62 lines, plus shield
- Fast and easy connections
- Double deck screw terminals provide compact wiring

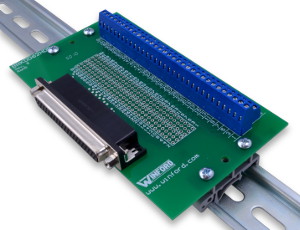

- Rubber feet or DIN rail mount
Datasheet: BRKDD62HDF Breakout Board Datasheet
Product details:
- DB62 (high density, three row) connector
- Screw terminal for each of the 62 lines, plus shield
- Solder pad connection holes, five (5) per line
- Screw terminals accommodate wire sizes from 16AWG to 26AWG
- Approximate dimensions: 3.0″ x 5.4″
- Rubber feet or DIN rail mount
